Lightweight switch with 3 positions ON/OFF/ON for Handlebar 22mm headlight MC Moped ATV

ON-OFF-ON Switch Headlight Light Switch Universal 7/8" (22mm) 12V Motorcycle Handlebar 7/8" (22mm) fits all vehicles with handlebars and standard outer diameter of 22-23 mm.

Example: can be connected to have P-lights on directly when ignition is switched on (position 0/off), low beam on position 1, high beam on position 2.

3 cables, 1 for input to switch, then output on 2 different cables from position 1 and 2 to provide power to one function at a time.

The Lightweight model is made of durable ABS to keep the weight as low as possible (also available in aluminum).

Moisture/dust-protected (but not completely waterproof) design, so long-term function on, for example, jet skis or in other extreme conditions cannot be guaranteed for obvious reasons.

Easy to use and works for controlling all 12V functions such as lighting etc. on motorcycles, ATVs, UTVs, Motocross, MX, electric bikes, garden machinery etc.

Specification:

Color: Black

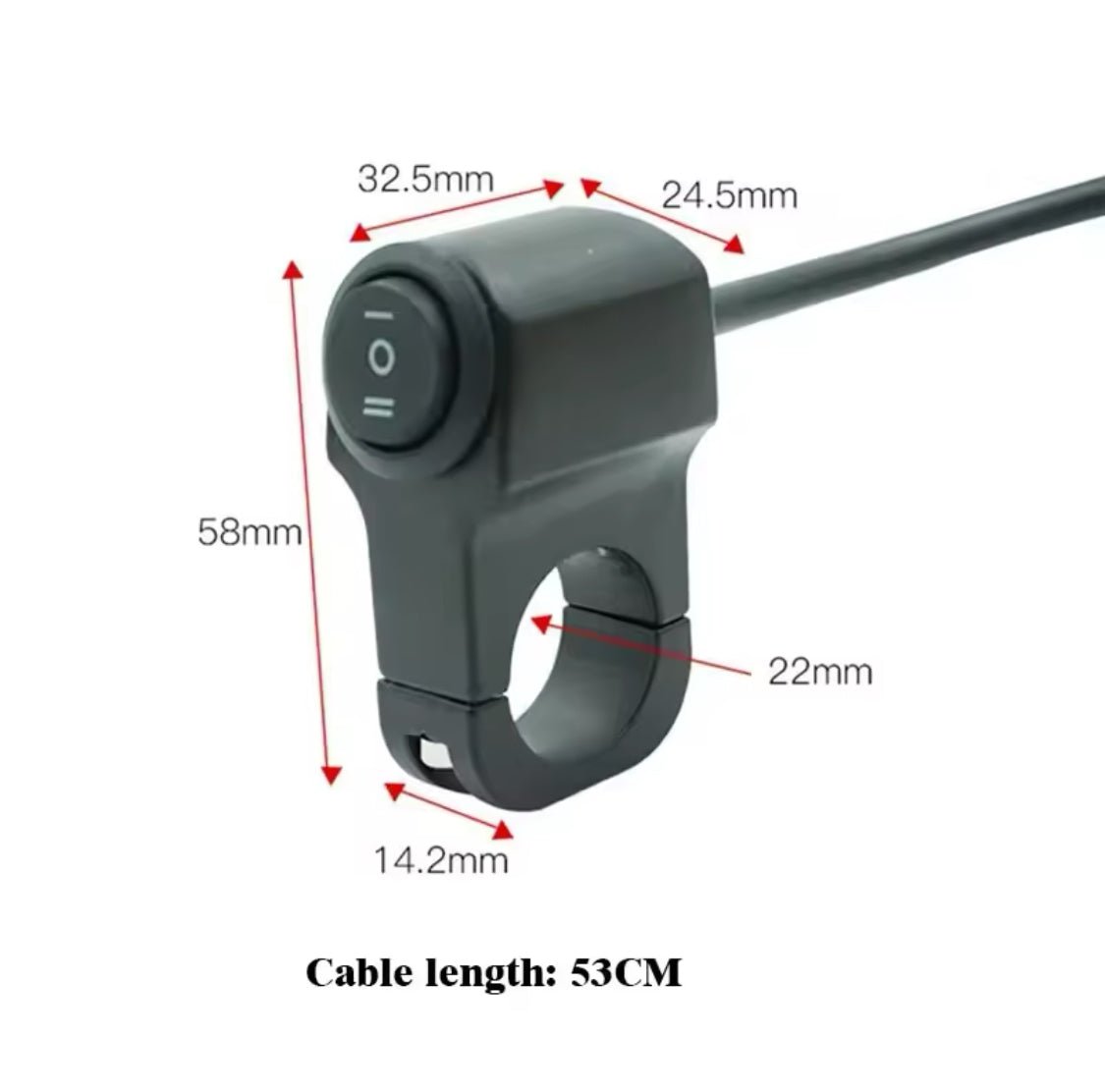

Material: ABS Weight: approx. 40 grams total with cable as shown in the picture. (Compared to the aluminum one at approx. 60g) Cable length: approx. 50 cm
Voltage: 12V-60V Power: 200W (max) Current: up to 10A

Installation: screwed with a cap around the handlebar in a suitable place with a diameter of 22-23 mm.
